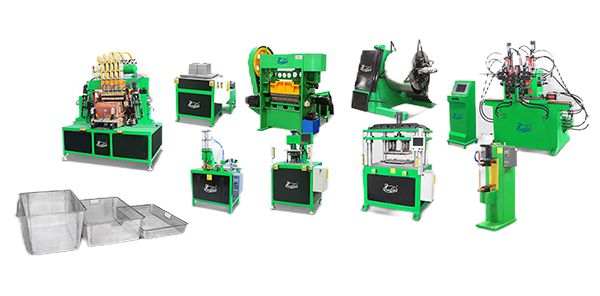

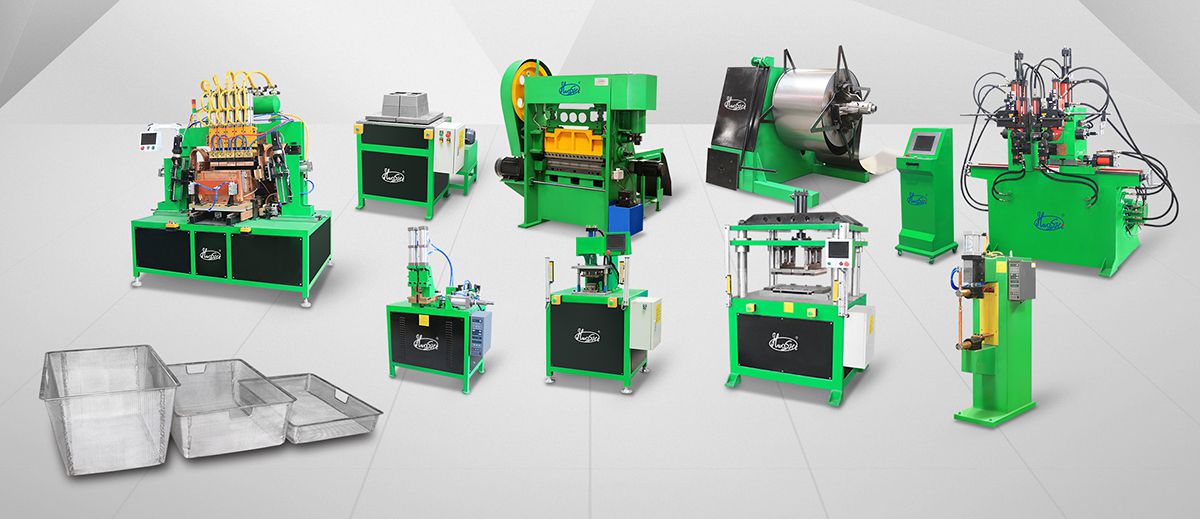

The automatic welding line is used for the production of mesh baskets & drawers. Designed for precision forming and welding, this mesh basket welding system seamlessly integrates five key processes: wire mesh forming, side strip forming, welding for combination, mesh basket forming, and edging.
Experience optimal efficiency with an estimated daily production ranging from 450 to 500 pieces over an 8-hour shift, depending on proficiency levels.

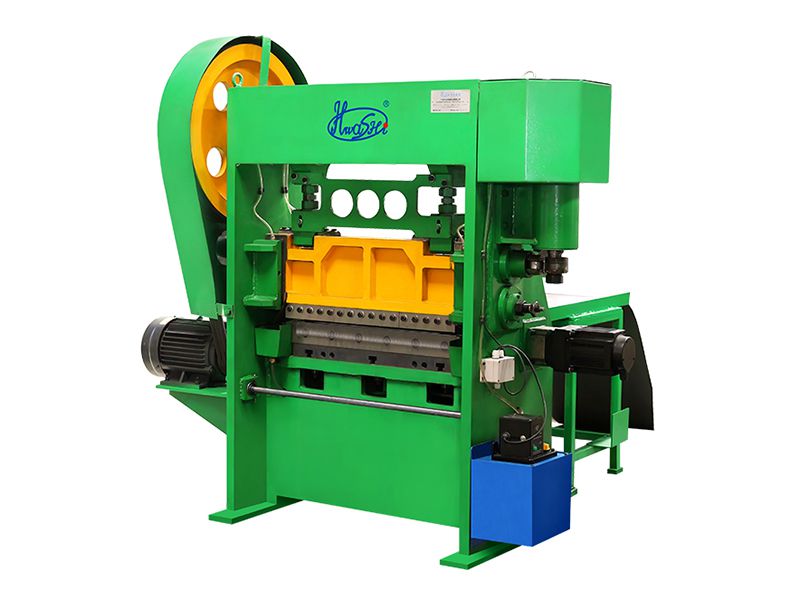

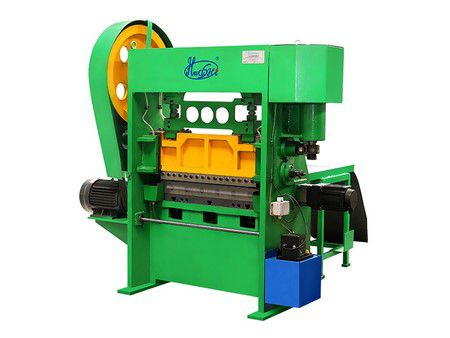

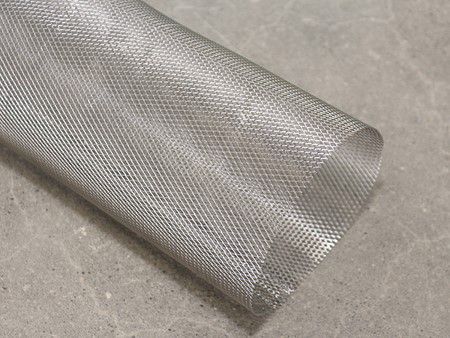

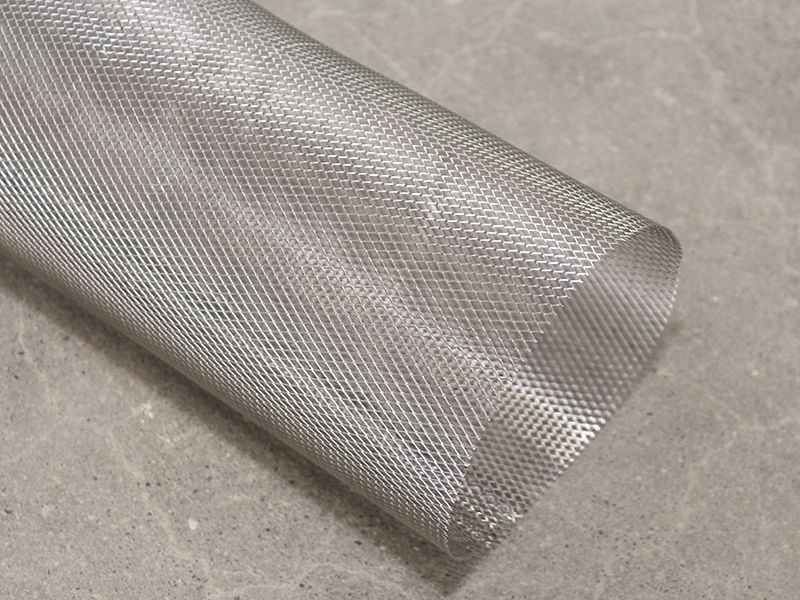

The wire mesh making process involves wire mesh stamping, rolling, straightening and shearing.
Thickness of steel sheet: 0.2-1mm Stamping speed: 280 times/min Stamping width: ≤600mm

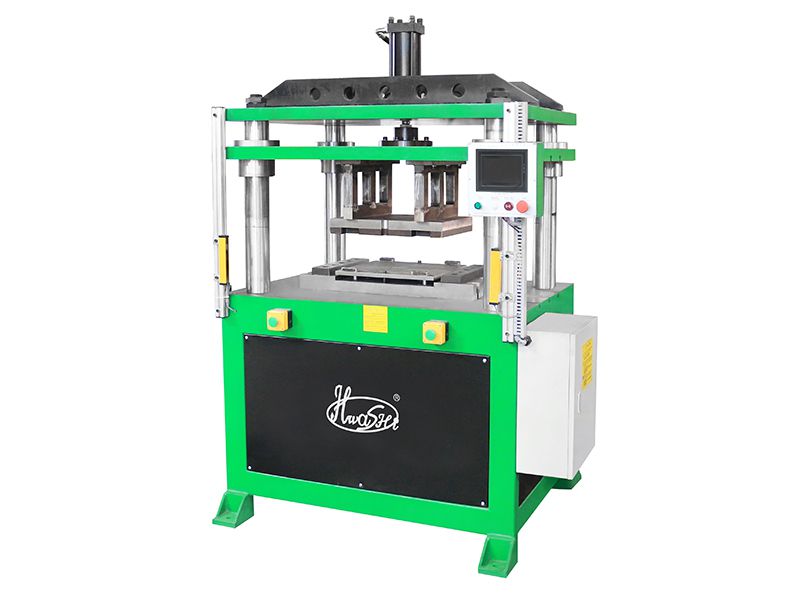

The square wire mesh is stamped and sheared into trapezoidal shape.

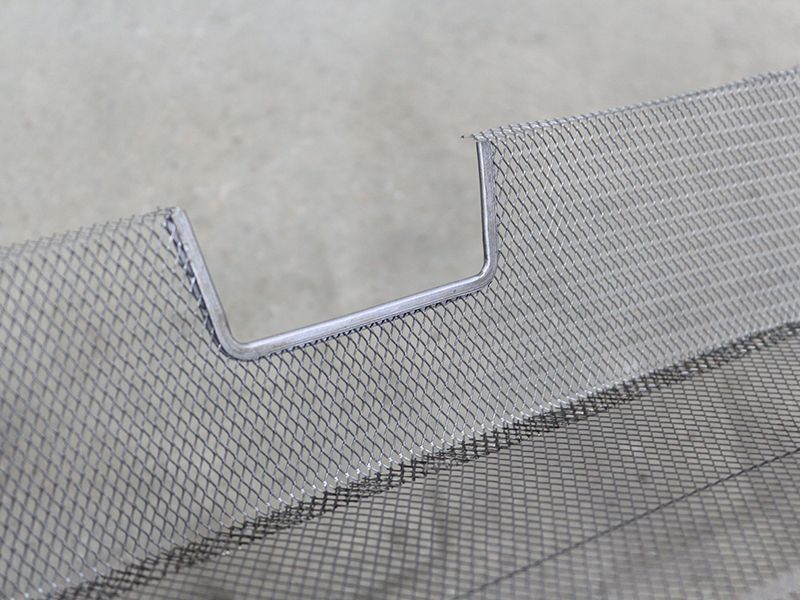

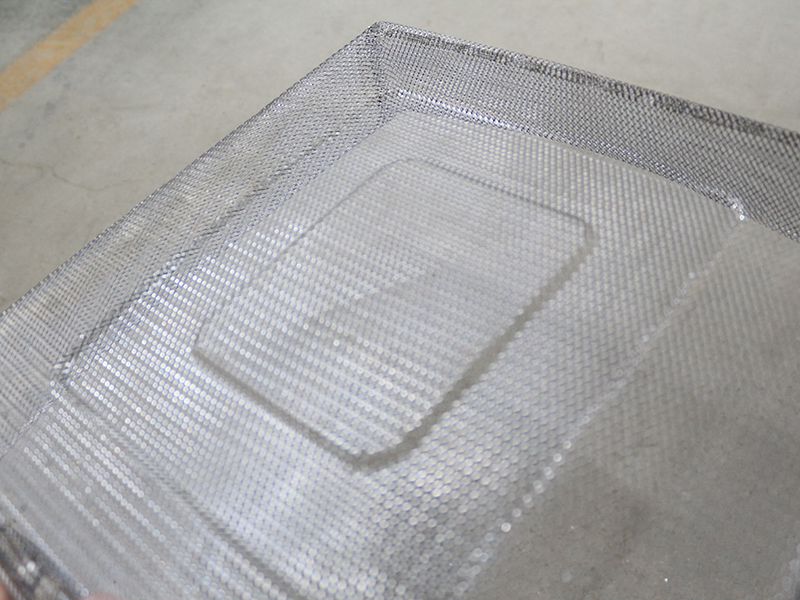

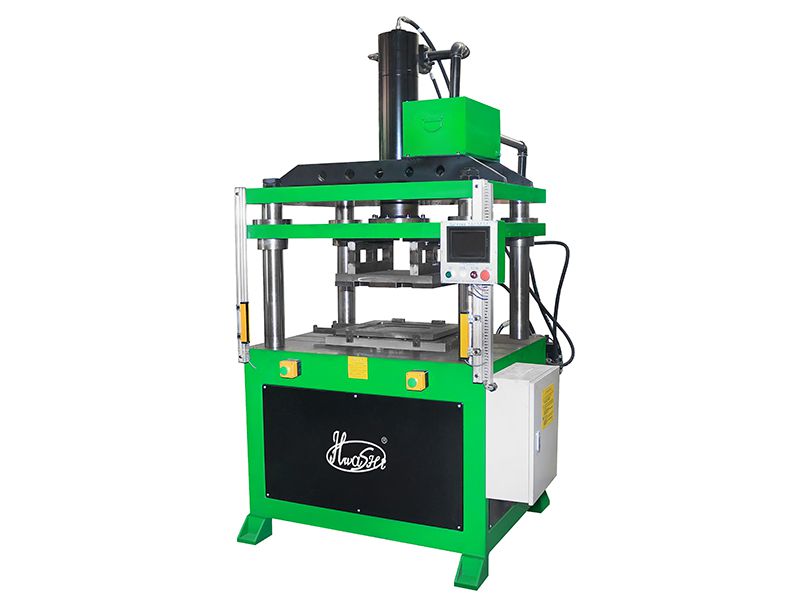

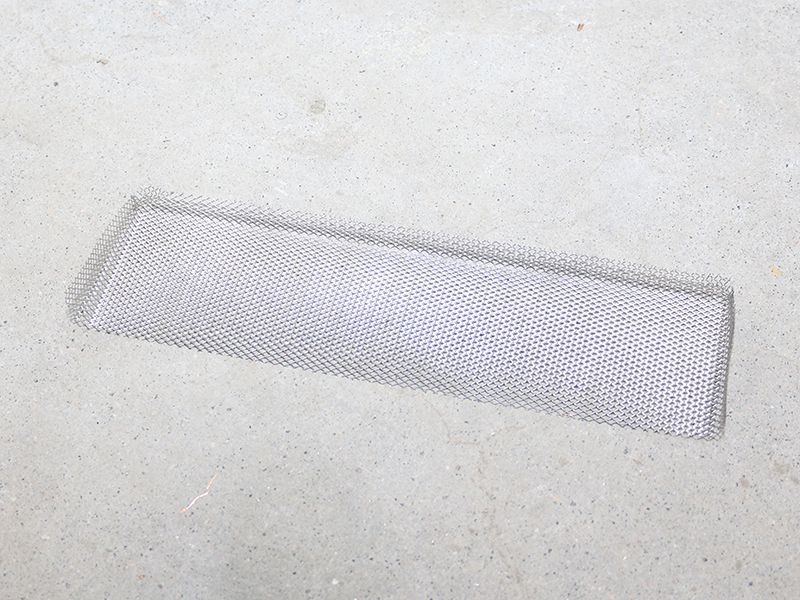

The square mesh is stamped and pressed into a U-shaped bottom mesh.

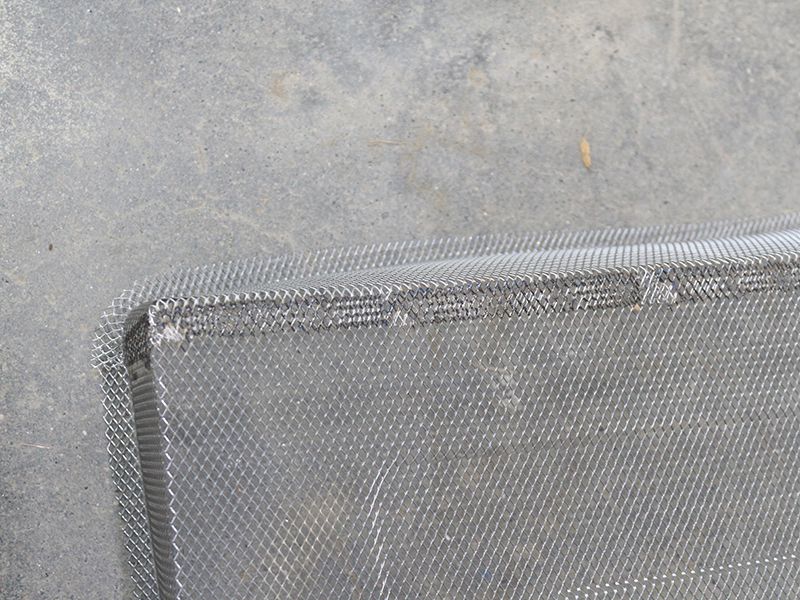

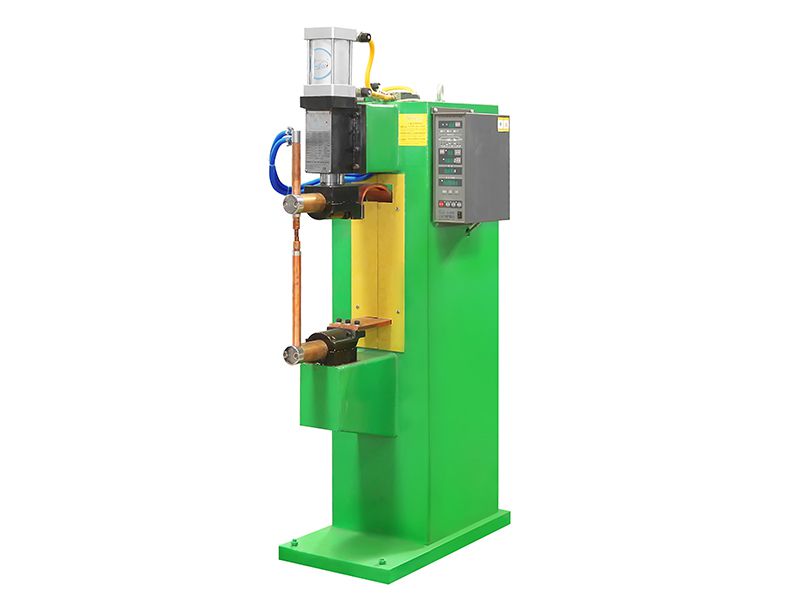

Secure the bottom mesh and side mesh combinations using a spot welder.

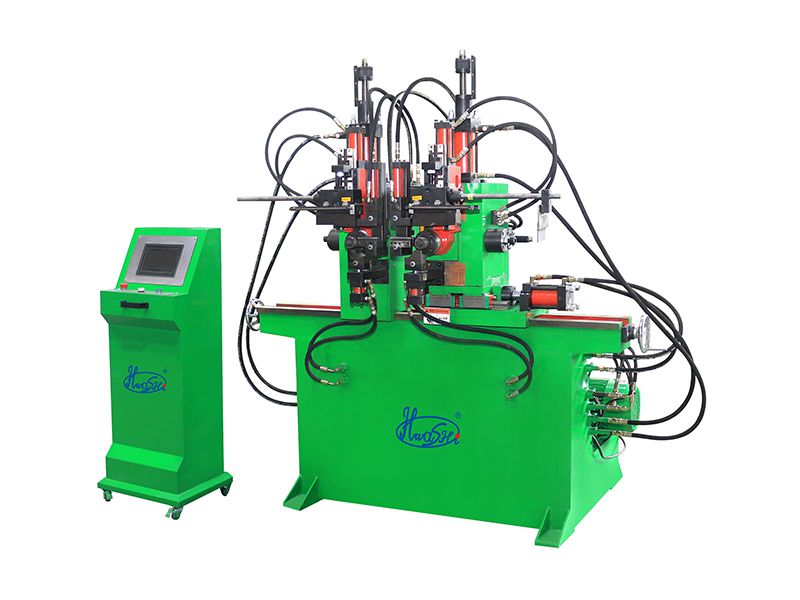

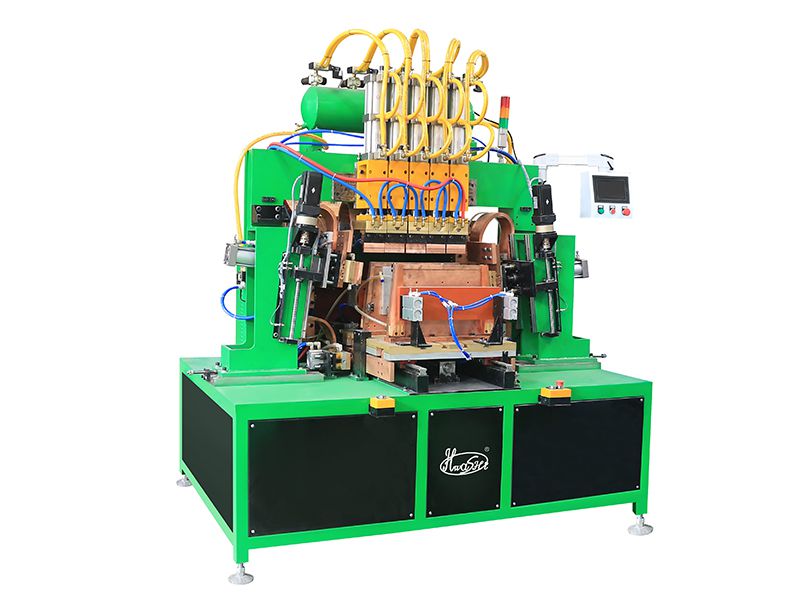

After manual loading and unloading, assembly of side and bottom mesh will be performed by the multi-head mesh welding machine.

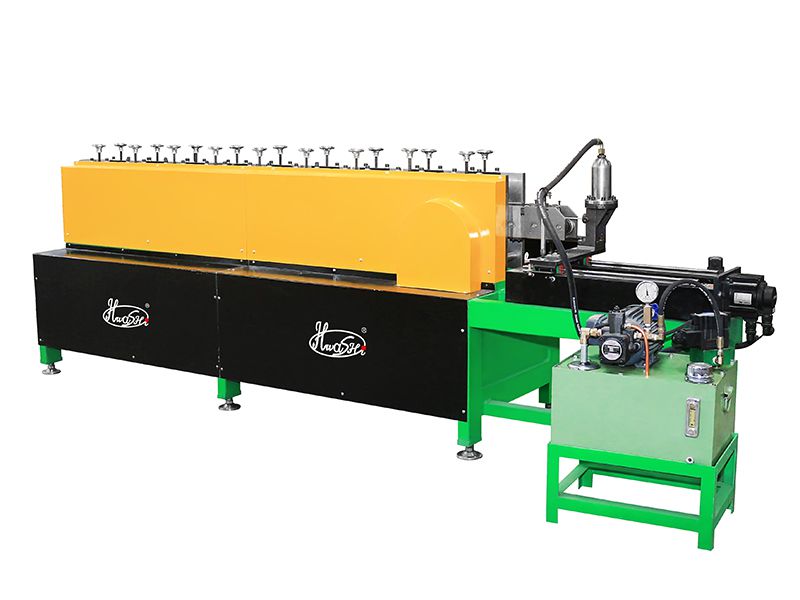

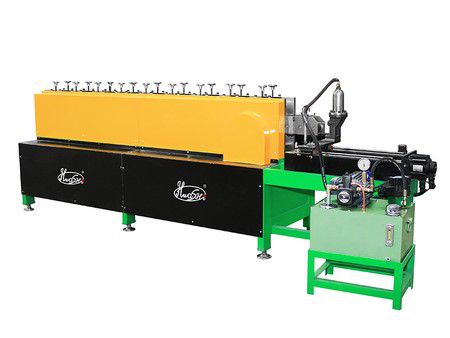

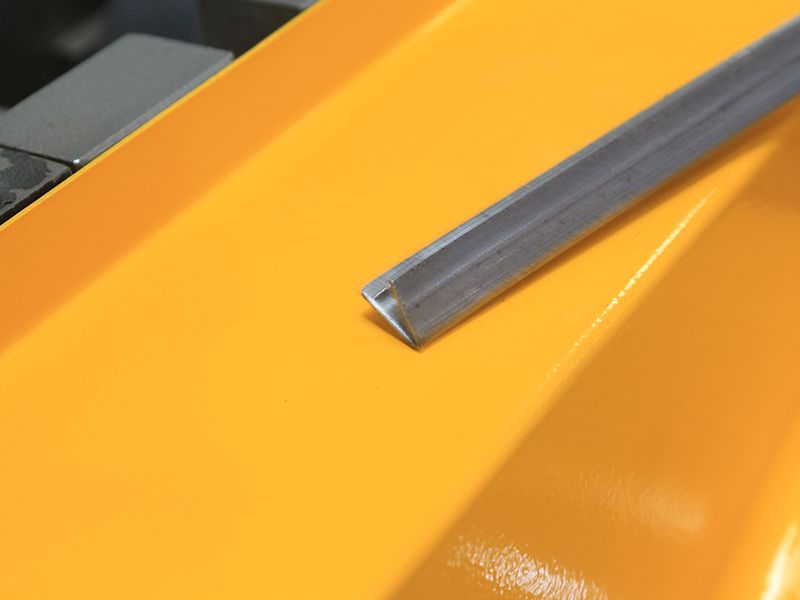

Utilize the roller press to shape the steel strip into a V-shaped edge strip. Input the desired length, and the equipment will automatically straighten and cut the strip to the specified length.
Use the bending machine to bend the side strips into the shape of the frame with smooth and flat surface.

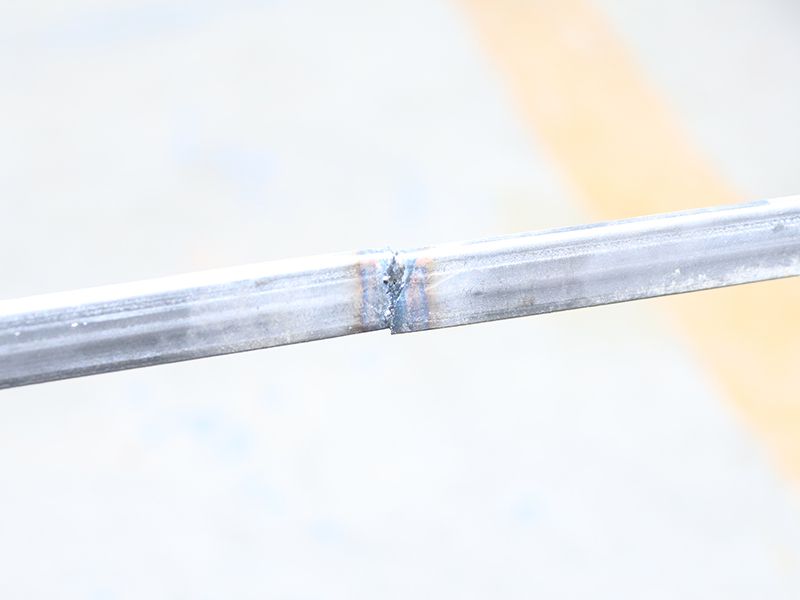

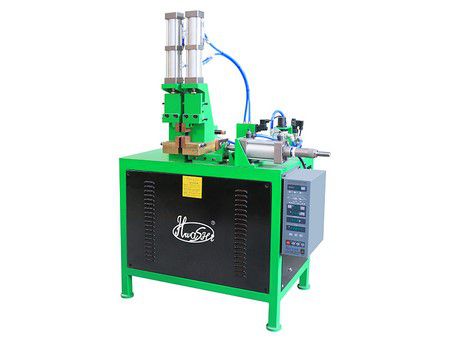

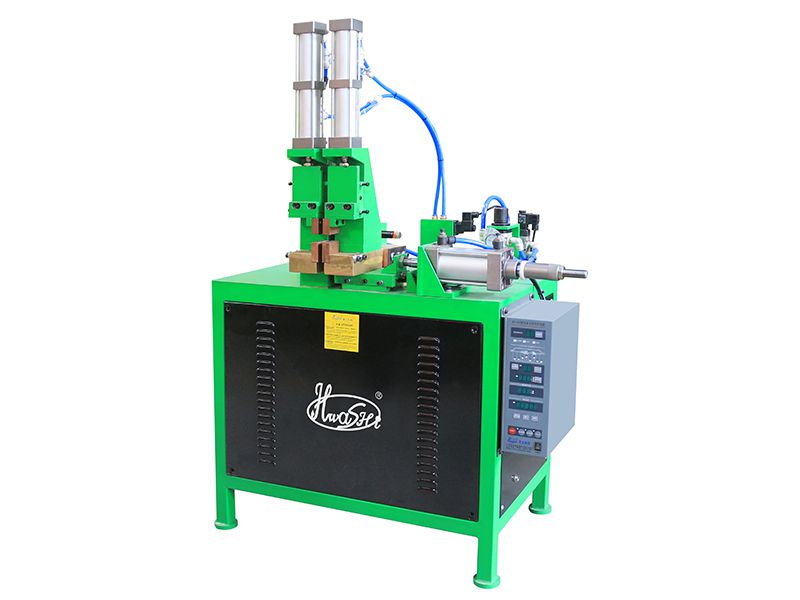

Two ends of the steel strips are joined by the butt welding machine. The joint is strong and durable.

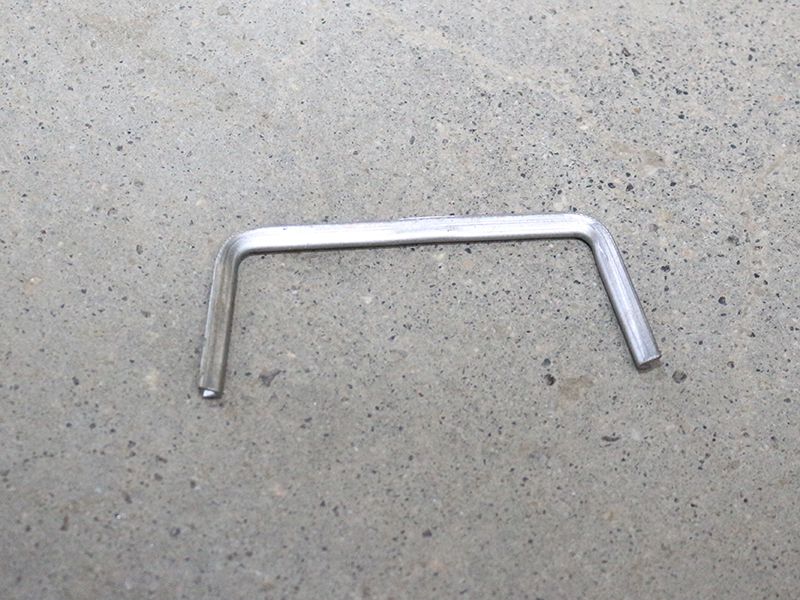

The steel strip is bent into U-shaped handle by the bending machine. Two steel handles can be bent at a time.

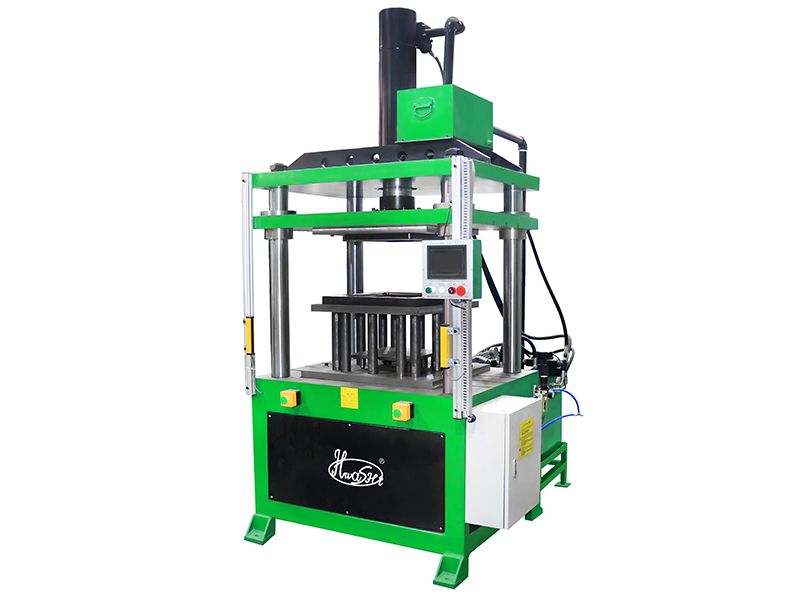

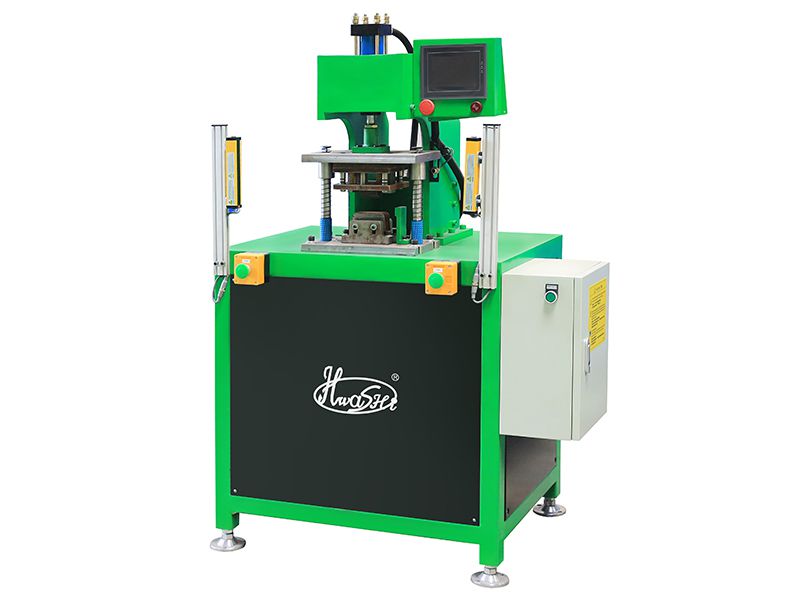

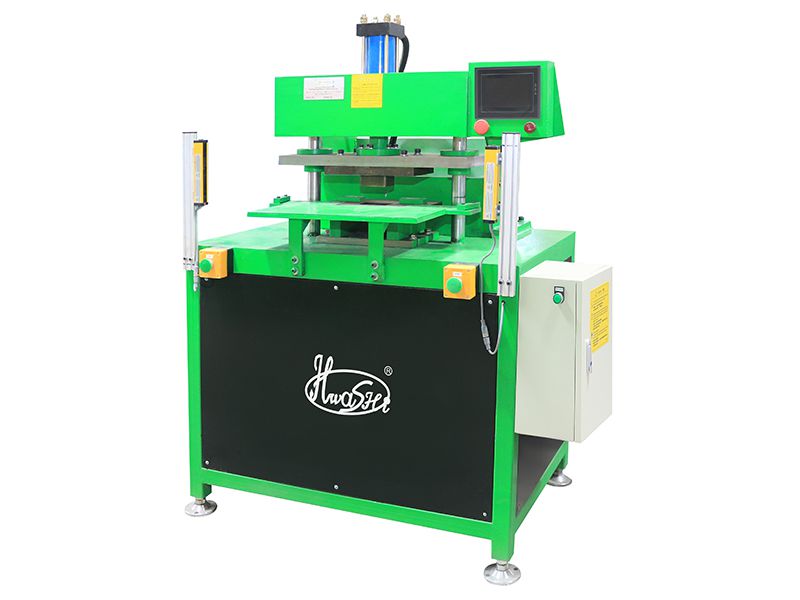

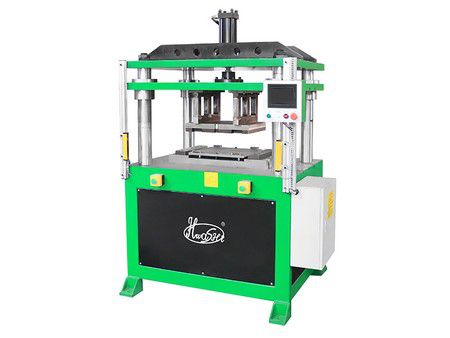

The hydraulic edging machine is used to secure the handle edge strips to the bottom mesh opening.

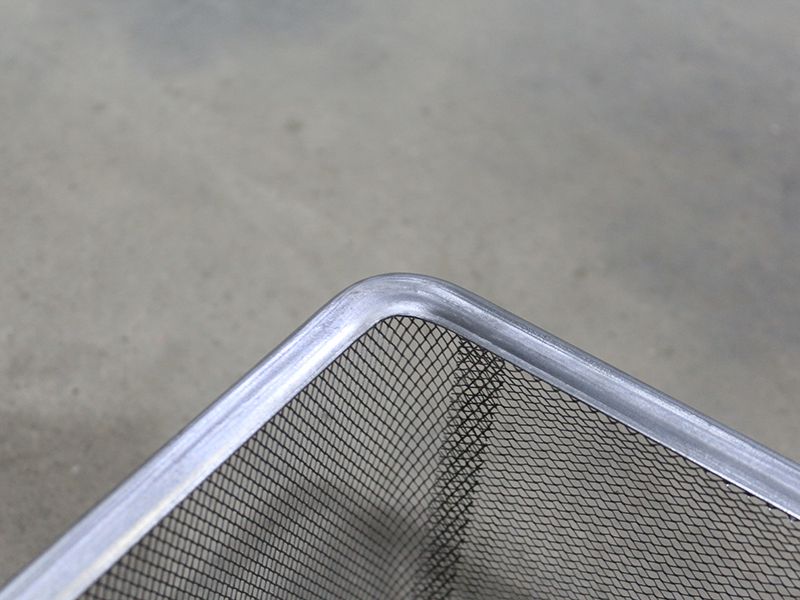

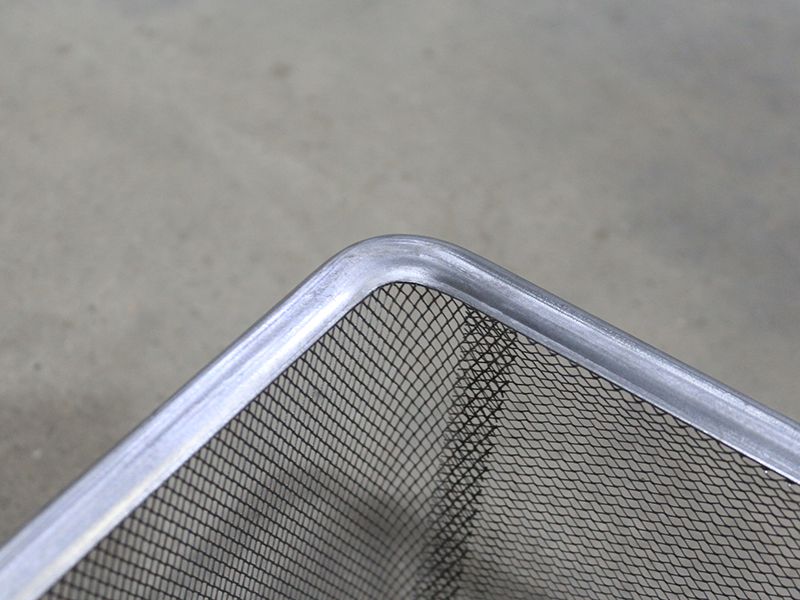

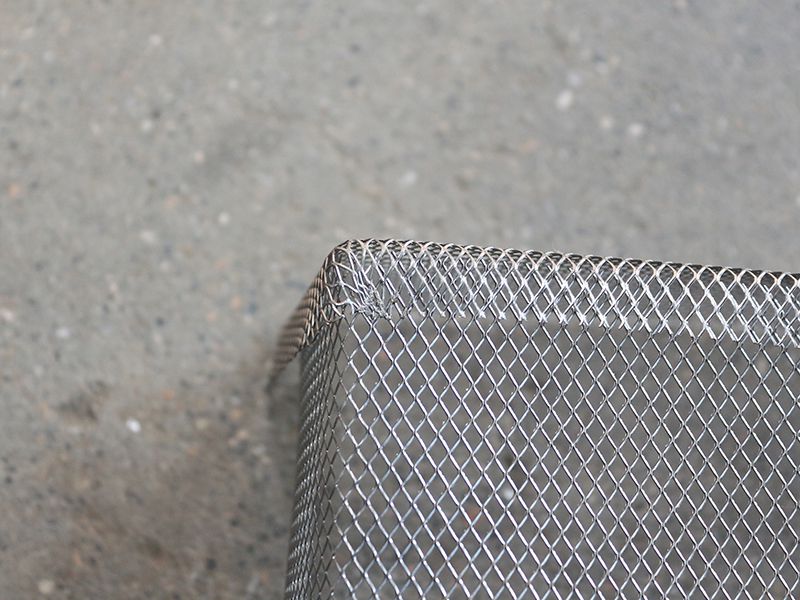

The mesh basket edging machine is used to assemble the side strips with the bottom mesh.
