Spot Welding
-

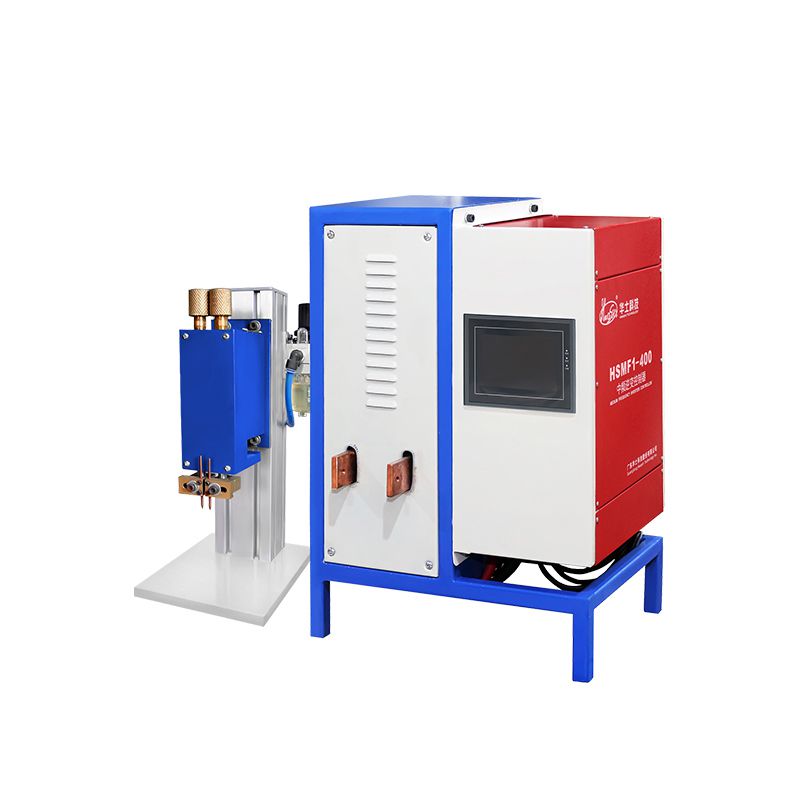

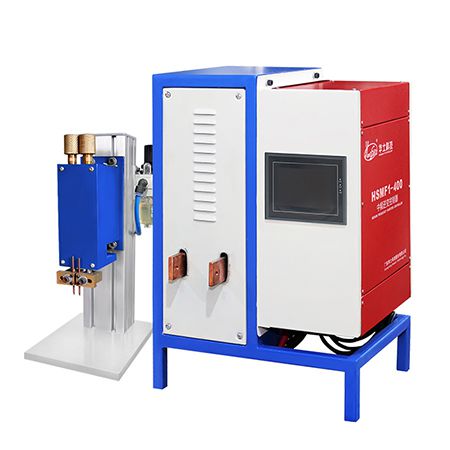

Mid-frequency DC inverter spot welder converts three-phase AC power into DC power through rectification. The output of the MFDC inverter will be squares waves of electrical current at medium frequency of 1000HZ after controlled by the inverter circuit composed of IGBTs. Then it is transferred to primary transformer and the voltage is stepped down and rectified to provide a low-pulse DC current for welding the workpiece. The inverter adjusts the duty cycle of the IGBTs by feeding back the primary or secondary welding current, thereby achieving a constant current during the entire welding process.
Copper, aluminum, nickel, molybdenum, tungsten, manganese, gold, silver, and other non-ferrous metals
Low carbon steel plate welding, stainless steel plate welding, galvanized plate welding, aluminum plate welding, spot welding of wire, multiple spot projection welding, spot welding of high-strength steel in the automotive manufacturing industry, nut projection welding, as well as welding of copper wire, silver contact, and copper plate in the high and low voltage electrical industry.

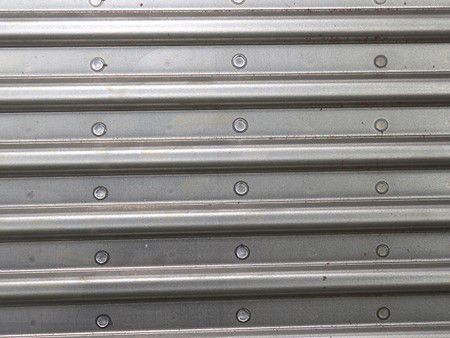

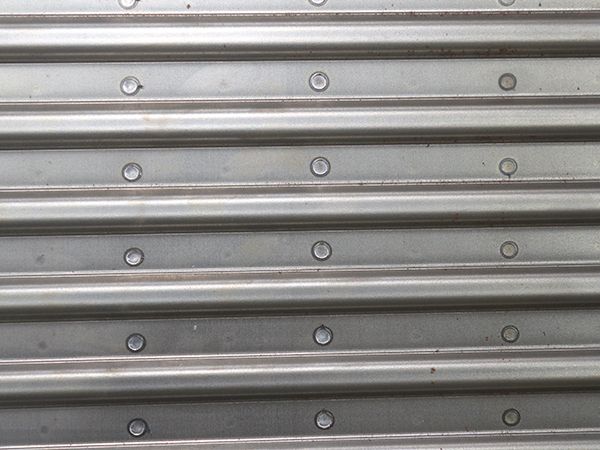

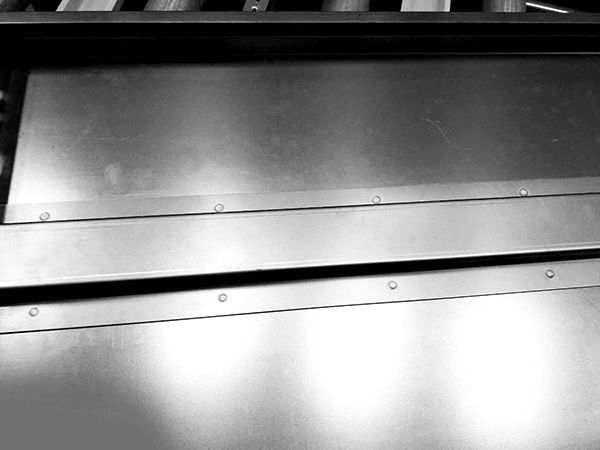

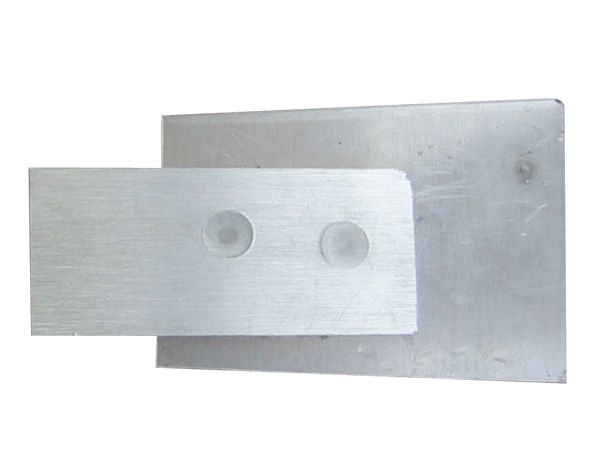

For spot welding of metal sheets (copper, aluminum, stainless steel, galvanized steel)
For one-time spot welding of kettle spout

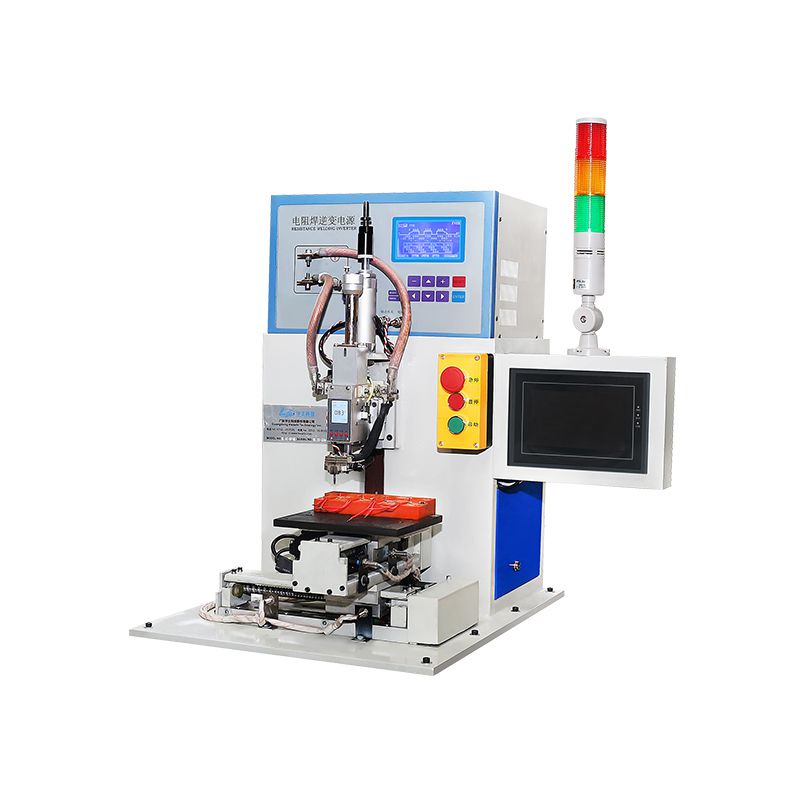

For precision welding of hardware parts, such as wires
For welding of band clamp
For welding of small hardware

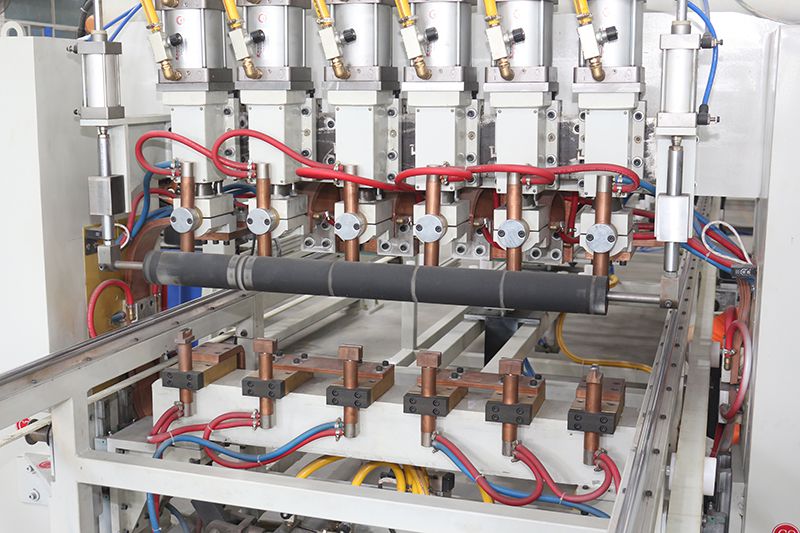

For multi-spot automatic welding of small hardware

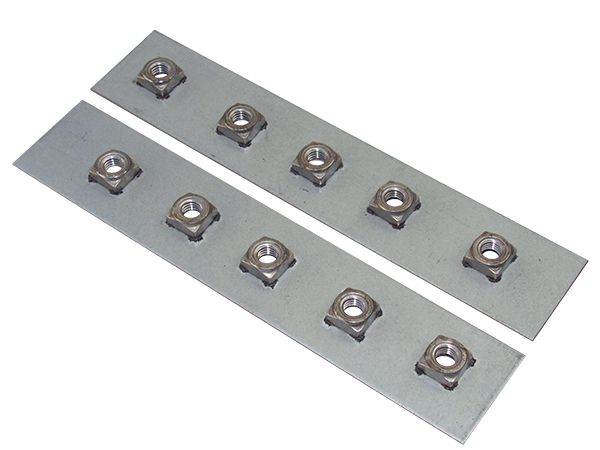

For automatic moving welding of large nuts

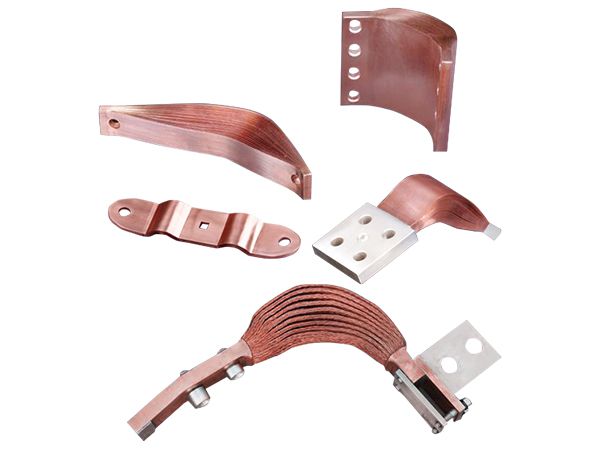

For welding of flexible copper connector

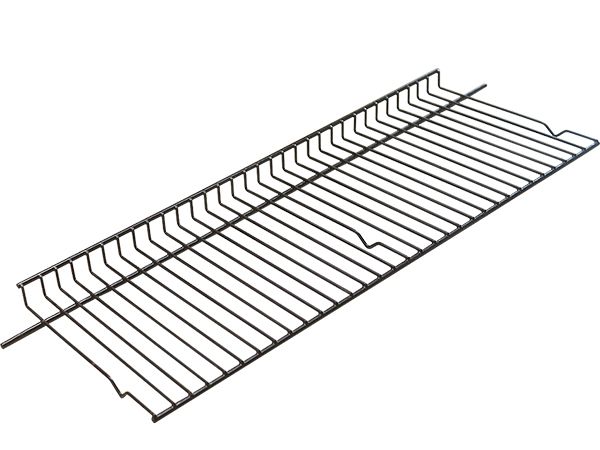

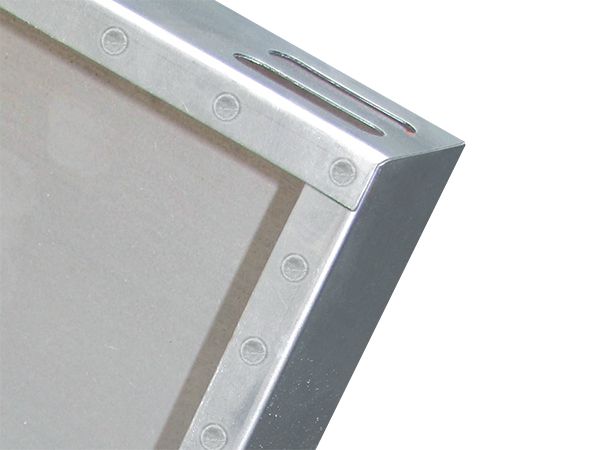

For welding of separator filter
| Model | Voltage (V) | Rated Capacity (kVA) | Max. Short Circuit Current (kA) | Duty Cycle (%) | Electrode Force (kg) | Electrode Stroke (mm) | Cooling Water (L/min) |
| | 380 3PH | 5 | 1.5 | 50 | 30 | 25 | 10 |
| | 380 3PH | 10 | 3 | 50 | 100 | 50 | 20 |
| | 380 3PH | 15 | 4.5 | 50 | 100 | 50 | 20 |
| | 380 3PH | 25 | 7.5 | 50 | 350 | 80 | 20 |
| | 380 3PH | 35 | 10 | 50 | 350 | 80 | 20 |
| | 380 3PH | 50 | 13 | 50 | 800 | 100 | 30 |
| | 380 3PH | 75 | 18 | 50 | 800 | 100 | 30 |
| | 380 3PH | 100 | 21 | 50 | 1000 | 100 | 30 |
| | 380 3PH | 120 | 23 | 50 | 1000 | 100 | 30 |
| | 380 3PH | 160 | 28 | 50 | 1000 | 100 | 30 |
| | 380 3PH | 200 | 32 | 50 | 1500 | 100 | 30 |
| | 380 3PH | 250 | 40 | 50 | 1500 | 100 | 50 |
| | 380 3PH | 300 | 48 | 50 | 2000 | 100 | 50 |
| | 380 3PH | 350 | 55 | 50 | 2000 | 100 | 60 |
| | 380 3PH | 400 | 62 | 50 | 2000 | 100 | 60 |
| | 380 3PH | 500 | 70 | 50 | 2000 | 100 | 60 |

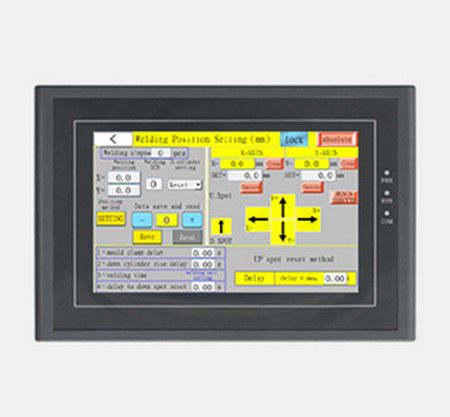

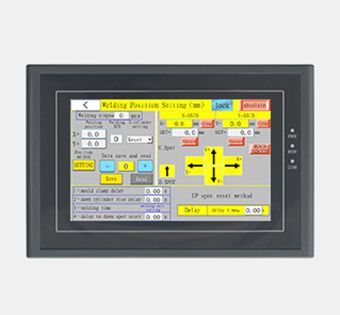

Touch screen allows for easy configuration and saving of welding parameters. The interface can be set to either Chinese or English, enabling precise adjustment of welding current parameters.

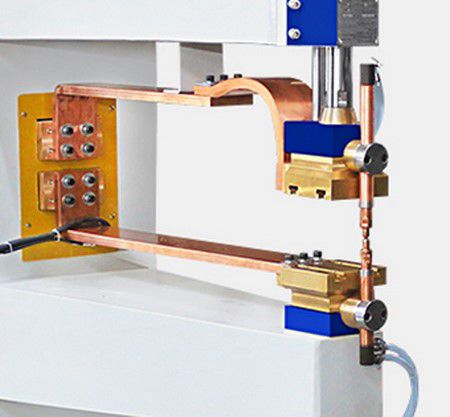

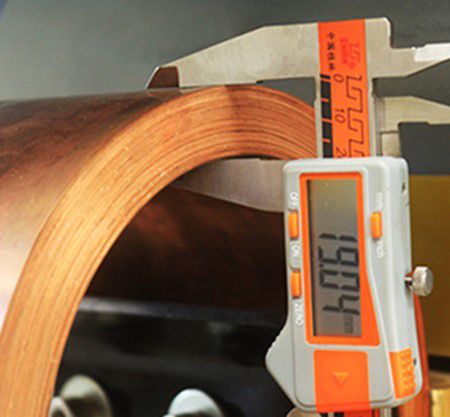

Thickened copper tape aims to enhance its conductivity.

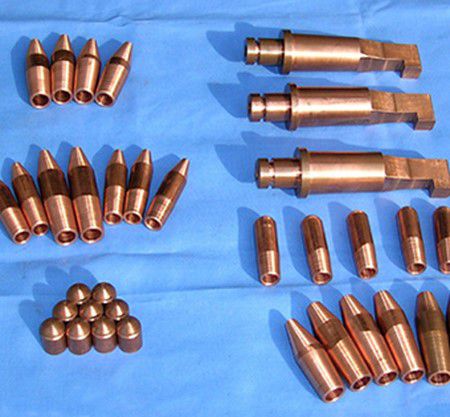

Customized electrodes (can be tailored to different materials and products)
Arm length can be customized according to the product size.
